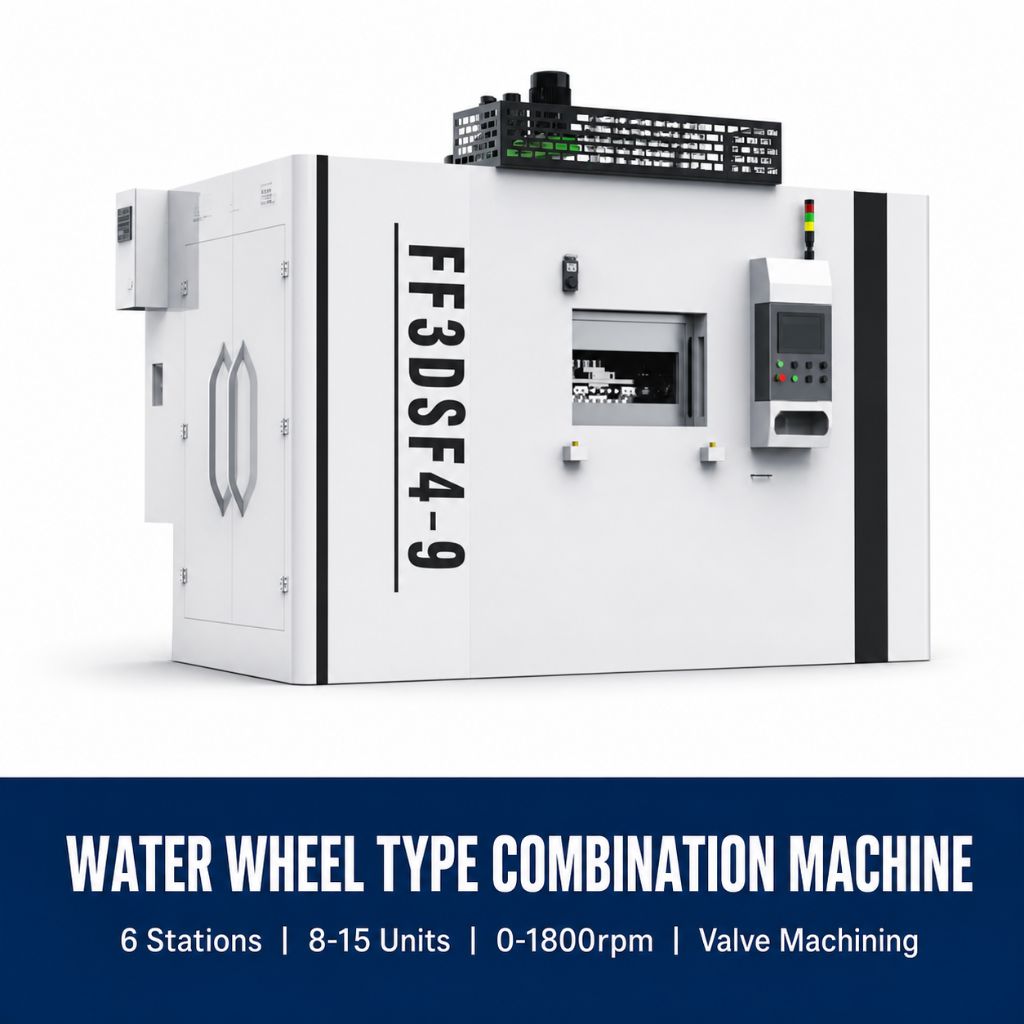

Six-station Water Wheel Type Combined Processing Machine, High-efficiency Special Processing Equipment for Industrial Valves

Customer *** (a European automotive parts manufacturer) purchased 50 multi-axis CNC machining centers. After delivery and installation, 20 of them experienced frequent alarms (code E-105) on the Z-axis servo drive, causing production line shutdown. The customer's on-site engineers could not locate the fault and urgently requested remote technical support.

The remote technical support team accessed the customer's workshop network via VPN, remotely logged into the control systems of 20 faulty devices, and read the drive parameters and logs. They found that transient voltage fluctuations in the local power grid (measured peak fluctuations up to ±12%) caused loss of internal drive parameters and gain misalignment. They immediately uploaded backup standard parameters remotely, adjusted the voltage compensation coefficient (parameter P-321 changed from default 1.0 to 1.15), and also performed the same parameter optimization and anti-interference configuration on the remaining 30 devices in advance.

Customer *** (a large automotive parts manufacturer in Southeast Asia) purchased 42 multi-station combined machine tools (including servo rotary tables) for mass production of engine housings. After three months of production, issues such as machining dimensional deviations and positioning errors of the rotary tables gradually emerged, with a failure rate as high as 85%, causing the production line to halt and a daily loss of approximately 1,200 units. The customer reported that they had already replaced some mechanical spindles and encoders but the problem persisted, and they urgently need on-site technical support.

We dispatched 3 senior after-sales engineers with specialized calibration tools, high-precision laser interferometers, and servo drive debugging computers to the site. After 72 hours of machine-by-machine inspection, the root causes were found: ① Frequent voltage fluctuations (±15%) in the customer's workshop power grid caused zero-point drift of the servo drive encoder; ② The customer's maintenance personnel did not periodically clean the pneumatic clamping device of the workbench according to the manual, resulting in insufficient clamping force and aggravated positioning errors. Solutions: 1) Install three-phase voltage stabilizers and independent servo drive filter modules on all 42 machine tools; 2) Recalibrate the mechanical zero points of all workbenches and update the tool change and clamping logic in the servo parameters; 3) Conduct on-site training for the customer's maintenance team, clarifying the daily cleaning of pneumatic clamping and voltage monitoring SOP.

Our company exported 100 multi-station combined machine tools (model: ***) to *** (a large South American valve manufacturer). After about 8 months of continuous operation, problems such as abnormal spindle noise, machining accuracy exceeding tolerance (roundness deviation up to 0.05mm or more), and increased vibration occurred in succession. The failure rate exceeded 60%, seriously affecting the customer's daily production of 5,000 valve fittings. The customer urgently requested a comprehensive inspection and repair.

Our company immediately activated the overseas emergency maintenance plan: 1) Sent 3 senior mechanical engineers and 2 electrical engineers carrying spare parts (60 sets of special spindle assemblies, bearing sets and calibration tools) to the customer's factory; 2) On-site inspection of spindle runout, bearing clearance and lubrication system on each machine, found that 80% of failures were caused by bearing preload failure and grease carbonization; 3) Disassembled spindles, replaced bearings, recalibrated preload and performed dynamic balance correction on all 100 machines, and upgraded lubrication cycles and temperature control parameters; 4) Also performed preventive maintenance on the remaining 40 non-faulty machines, replaced wear-prone seals and adjusted accuracy. The total maintenance took 14 working days, during which our side provided temporary alternative processing solutions to reduce the customer's production loss.

Customer *** (a Middle East valve group) purchased 50 sets of CNC machining equipment, along with matching servo rotary tables and mechanical spindles, through our company in a single order. After the equipment arrived at the port, the customer reported that their local operating team only had basic mechanical processing experience, and was completely unfamiliar with multi-axis simultaneous programming, turning-milling composite process parameter settings, and routine equipment maintenance. As a result, the yield rate of the first trial production parts was less than 30%, and frequent tool collisions and spindle alarms occurred. The customer requires our company to provide systematic training covering all production line operators, technicians, and maintenance engineers within two weeks; otherwise, they face huge production capacity losses and order default risks.

Our company immediately launches an emergency after-sales training plan: ① Dispatch 2 senior application engineers carrying training aids (including the same model of micro teaching machine, 3D simulation software, and Chinese-English bilingual operation manual) for a 7-day on-site visit; ② In the first 2 days, conduct group hands-on training on "safety regulations + basic programming + common fault identification" for 30 operators, with one mentoring technician assigned to each device; ③ On days 3-5, provide advanced courses on "multi-axis linkage process optimization, turning-milling composite macro programming, tool life management" for 10 technical backbone personnel, and record 15 hours of Chinese-language teaching videos for later reuse; ④ In the last 2 days, jointly inspect and calibrate 50 devices one by one with the customer's maintenance team, and establish personalized maintenance files for each device; ⑤ After the training, provide a 3-month remote meeting + real-time desktop sharing Q&A service. Due to the huge volume of after-sales work, our company simultaneously mobilizes 3 experts from the domestic technical center to provide 8-hour time-zone shift support.
